MADE IN JAPAN

Đặc điểm

• The mechanical seal employs an oil bath system.
• It has a built-in motor protection device.
• This is a spiral design that improves pump efficiency.
• The pump section is made entirely of reinforced plastic.
• It is possible to drain water down to a minimum level of 25mm (in non-automatic mode).

Ứng dụng

• For construction and civil engineering.
• For wastewater and sewage treatment.

Thông số chi tiết

• Non-automatic operation type.
• Minimum drainage water level: 25 mm.
• Discharge volume (L/min): 80.
• Total head (m): 5.
• Frequency (Hz): 50. Port
• diameter (mm): 32.
• Power supply (V): Single-phase 100.
• Current (A): 3.6.
• Output (kW): 0.15.
• Overall width (mm): 179.
• Overall length (mm): 136.
• Overall height (mm): 244.
• Power cord length (m): 4.

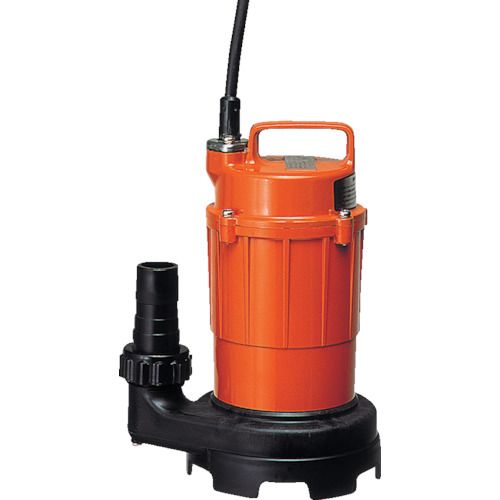

TERADA SG-150C
