MADE IN JAPAN

Đặc điểm

• All parts in contact with the fluid are made of resin and stainless steel (SUS304).
• The discharge direction can be set to either vertical or horizontal.
• It Đặc điểm a back pull-out structure that allows for inspection and cleaning without removing the piping.
• It has a built-in motor protection device.

Ứng dụng

• For use in combined wastewater treatment tanks.
• Clean water, wastewater, and water containing sewage.
• For general wastewater.

Thông số chi tiết

• Foreign object passage diameter: 35mm or less (PX-150: 28mm or less)
• Automatic operation type
• Discharge volume (L/min): 40
• Total head (m): 6.0
• Frequency (Hz): 60
• Bore diameter (mm): 40
• Power supply (V): Three-phase 200
• Current (A): 1.8
• Output (kW): 0.25
• Overall width (mm): 248
• Overall length (mm): 160
• Overall height (mm): 390
• Power cord length (m): 5m (PX-150: 4m)

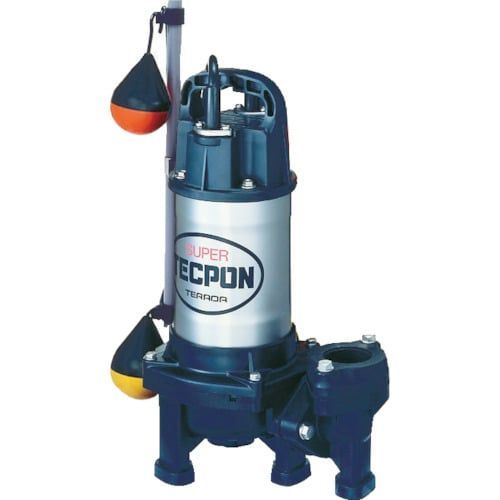

TERADA PXA-250T
