MADE IN JAPAN

Đặc điểm

• This pump Đặc điểm stainless steel (SUS316) and resin in the wetted parts, making it highly resistant to rust and significantly increasing its durability.
• The vortex structure clears blockages.
• It has a built-in motor protection device.
• This is a small and lightweight type, making it convenient to carry and set up.
• Thanks to the adoption of new materials, it is less prone to wear and tear and is very strong.
• The non-clogging impeller design minimizes clogging.
• The shaft seal utilizes a combination of a highly wear-resistant double mechanical seal and an oil seal.
• It incorporates an automatic reset motor protection device to prevent motor damage.

Ứng dụng

• For wastewater treatment.
• For industrial equipment.
• For building equipment.

Thông số chi tiết

• Foreign object passage diameter: 15 mm or less
• Automatic operation type
• Foreign object passage length (mm): Maximum 100
• Discharge volume (L/min): 120
• Total head (m): 4.0
• Frequency (Hz): 50
• Bore diameter (mm): 50
• Power supply (V): Three-phase 200
• Current (A): 1.6
• Output (kW):
• 0.25 Overall width (mm): 253
• Overall length (mm): 180
• Overall height (mm): 399
• Foreign object passage diameter (mm): 15
• Liquid temperature (°C): 0 to 40
• Usable water quality: Clean water, wastewater, water containing sewage
• Power cord length (m): 5
• Body height (mm): 399
• Body overall width (mm): 253
• Body dimensions (mm) Height: 399

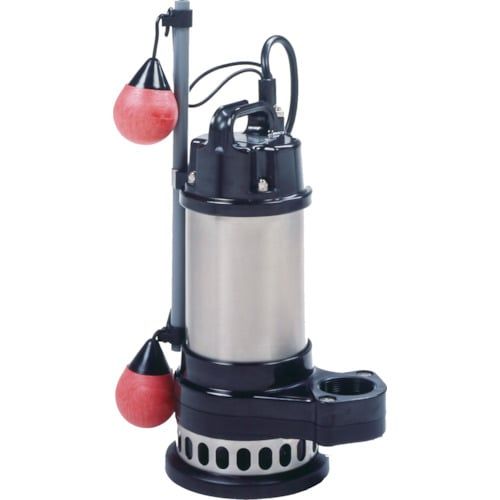

TERADA CXA-250T 50HZ
