MADE IN JAPAN

Đặc điểm

• This pump Đặc điểm stainless steel (SUS316) and resin in the wetted parts, making it highly resistant to rust and significantly increasing its durability.
• The vortex structure eliminates blockages.
• It has a built-in motor protection device.
• It's a small, lightweight type that's easy to carry around.
• Thanks to the adoption of new materials, it is less prone to wear and tear and is very strong.

Ứng dụng

• For wastewater treatment.
• For industrial equipment.
• For construction and civil engineering.

Thông số chi tiết

• Power cord length: 5m
• Object passage diameter: 25mm or less
• Non-automatic operation type
• Custom-made versions available for different voltages (one unit at a time)
• Discharge volume (L/min): 120
• Total head (m): 4.0
• Frequency (Hz): 50
• Bore diameter (mm): 50
• Power supply (V): Three-phase 200
• Current (A): 1.6
• Output (kW): 0.25
• Overall width (mm): 253
• Overall length (mm): 180
• Overall height (mm): 399
• Object passage diameter (mm): 25
• Liquid temperature (°C): 0-40
• Usable water quality: Clean water, wastewater, water containing sewage
• Power cord length (m): 5
• Body height (mm): 399
• Body overall width (mm): 253
• Body dimensions (mm) Height: 399

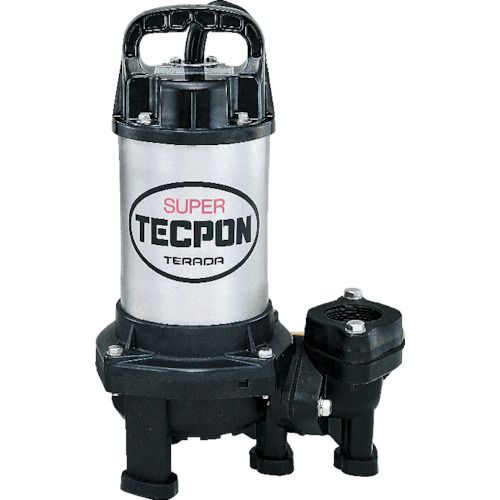

TERADA CX-250T
