Đặc điểm

• It complies with the European RoHS Directive and EU Directives (CE marking).
• The motor and pump are integrated to achieve a smaller and lighter design.
• The wire connections will be fixed to the terminal block.
• It is compatible with both 50/60Hz.
• It has a self-priming function and can be installed in any location.

Ứng dụng

• For circulating cutting fluid in machine tools and other equipment.
• Circulation of the cooling system.

Thông số chi tiết

• Rated power supply: 3-phase 200/3-phase 200-220V
• Self-priming type
• Discharge rate (L/min) 50Hz: 13
• Discharge rate (L/min) 60Hz: 16
• Total head (m): 1.5
• Output (W): 40
• Caliber (mm): 8
• Caliber: Rp1/4

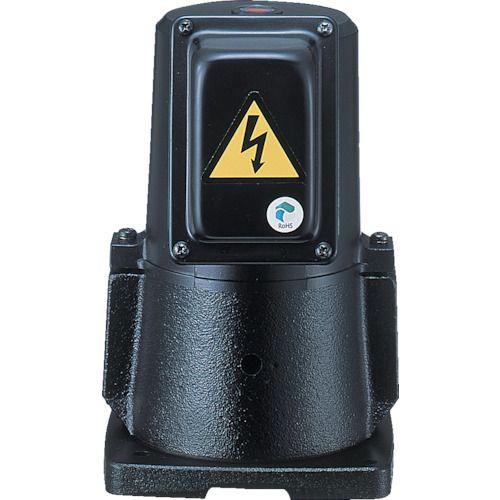

TERAL VKN-045A
