Đặc điểm

• This is a natural convection type dryer.
• By reviewing the airtightness and insulation performance, it is now possible to control the temperature up to a maximum of 300°C (270°C for the W type).
• We have reduced power consumption by up to approximately 15% (compared to our previous model).
• The 420W and 520W models have an observation window.
• It comes standard with a variable independent over-temperature protection device.
• Timer and program functions are included as standard Đặc điểm.

Ứng dụng

• Drying glassware.
• Drying of powders such as ceramics and minerals.
• Heat treatments such as drying semiconductors and baking substrates.

Thông số chi tiết

• Operating ambient temperature range: 5 to 35°C
• Operating temperature range: Room temperature +10 to 270°C
• Temperature control method: PID control
• Power cord length: 2m
• Compliant with Electrical Appliance and Material Safety Law
• Power supply (V): Single phase 100
• Internal volume (L): 163
• Body dimensions (mm) Width: 715
• Body dimensions (mm) Depth: 675
• Body dimensions (mm) Height: 886
• Effective internal dimensions (mm) Width: 600
• Effective internal dimensions (mm) Depth: 544
• Effective internal dimensions (mm) Height: 500
• Operating temperature range (°C): Room temperature +10 to 270
• Heater capacity (W): 1200
• Power consumption (W): 1300
• Safety devices: Variable independent over-temperature protector, leakage/overcurrent breaker, door open alarm
• Observation window: Yes

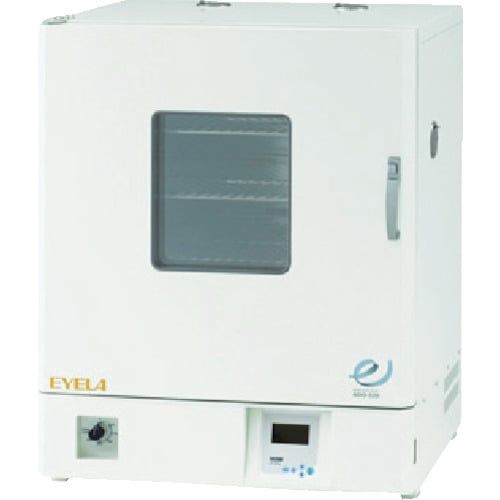

TOKYO NDO-520W
