Đặc điểm

• Because it's an integrated tank system, it reduces the hassle of equipment replacement work, whether for new installations, expansions, or replacements.
• Performance can be maintained even in an operating temperature range of 5 to 35°C.

Ứng dụng

• Cooling of heat-generating parts in industrial machinery, machine tools, analytical and measuring instruments, semiconductor manufacturing equipment, etc.

Thông số chi tiết

• Operating ambient temperature range: 5 to 35°C
• Temperature control accuracy: ±2°C
• Maximum head (50/60Hz): 9.5/13m
• Nozzle diameter: 10mm outer diameter
• Air-cooled
• Safety device: Leakage/overcurrent breaker, refrigerator protection timer
• Power cord length: 2.8m
• Width (mm): 232
• Depth (mm): 497
• Height (mm): 868
• Maximum flow rate (L/min) (50/60Hz): 14/16
• Power supply (V): Single-phase 100
• Temperature control range (°C): -20 to 20
• Power consumption (W): 1100
• Cooling capacity (W) (50Hz/at 10°C): 850
• Type: Slim

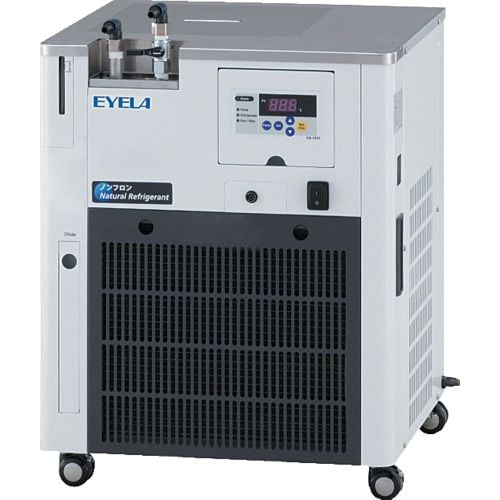

TOKYO CA-1113
