Đặc điểm

• Because it's an integrated tank design, it reduces the hassle of equipment replacement work, even when installing new units, expanding existing ones, or replacing existing ones.
• The piping can be removed with a single touch, eliminating the hassle of tightening and loosening the piping with bands as in conventional systems.
• The direction of the circulation nozzle can be freely changed.
• This is a compact, space-saving type.
• It can be widely used for cooling heat-generating parts in industrial machinery, analytical and measuring instruments, and more. It also Đặc điểm comprehensive safety functions to accommodate a variety of applications.

Ứng dụng

• External dimensions (mm): 205W x 405D x 545H

Thông số chi tiết

• Operating ambient temperature range: 5 to 35°C
• Nozzle diameter: 10mm outer diameter
• Air-cooled
• Safety device: Leakage/overcurrent breaker, refrigerator protection timer
• Power cord length: 2m
• Temperature control accuracy: ±2°C (when set to -20 to 0°C), ±1°C (when set to 0 to 20°C)
• Maximum head (50/60Hz): 4.2/5.6m
• External circulation capacity Maximum flow rate 9/10 L/min, maximum head 4.2/5.6m (50/60Hz)
• For closed systems Circulation
• width (mm): 205
• Depth (mm): 405
• Height (mm): 545
• Maximum flow rate (L/min) (50/60Hz): 9/10
• Power supply (V): Single phase 100
• Temperature control range (°C): -20 to 30
• Power consumption (W): 800
• Cooling capacity (W) (50Hz/at 10°C): 450
• Type: Compact

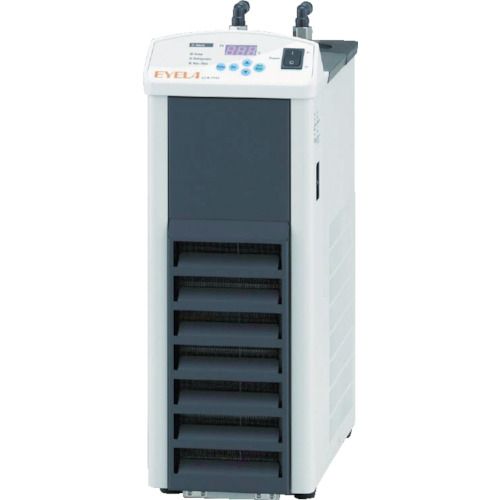

TOKYO CCA-1112A
