MADE IN JAPAN

Đặc điểm

• This is an eco-friendly low-temperature constant-temperature water circulation system using an inverter system.
• The system circulates liquids between -10 and 80°C using highly precise temperature control via heaters and refrigerators.
• This product offers approximately 77% energy savings compared to the conventional model (NCC-1120).
• The device volume has also been reduced by 61%, making it more compact.

Ứng dụng

• For temperature control in light sources for electron microscopes and spectrophotometers, lapping equipment (semiconductor manufacturing equipment), exposure equipment, and reaction vessels.

Thông số chi tiết

• Air-cooled chiller with
• temperature control accuracy: ±0.1℃ to 0.2℃.
• High-pressure pump specification with maximum head (50Hz): 19.4m.
• Pure water circulation possible.
• Operating ambient temperature range: 5 to 35℃.
• Temperature control: PID control.
• Safety devices: Chiller overload, chiller high-pressure switch, leakage/overcurrent breaker.
• Power cord length: 2m.
• Width (mm): 340.
• Depth (mm): 452.
• Height (mm): 852.
• Maximum flow rate (L/min) (50/60Hz): 21.8.
• Power supply (V): Single-phase 200.
• Temperature control range (℃): -10 to 80.
• Power consumption (W): 2900.
• Cooling capacity (W) (50Hz/at 10℃): 1240.
• Compatible circulating water: Tap water and pure water.

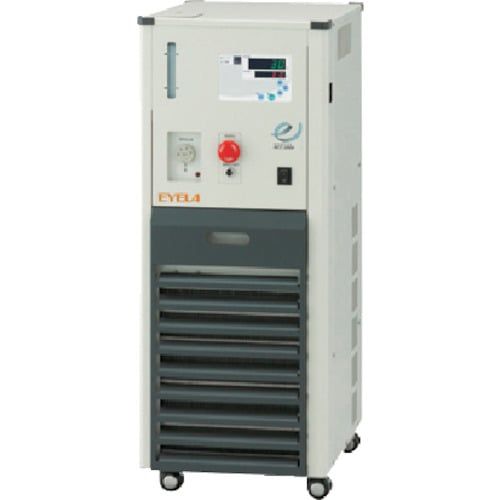

TOKYO NCC-3000D
