MADE IN JAPAN

Đặc điểm

• Since the only part in contact with the liquid is the tube, there is no contact with any metal parts, eliminating concerns about contamination of the liquid.
• The liquid can also be dispensed in the reverse direction by switching the switch.
• It can deliver a constant flow rate with high flow accuracy over a wide range from 10 ml/h to 1450 ml/h.
• The maximum usable viscosity is 2000 cP.
• It is adjustable by tightening a screw.

Ứng dụng

• This includes the delivery of general chemical solutions, solutions containing microorganisms, and viscous liquids.

Thông số chi tiết

• Supported viscosity: up to 2000 cP
• Power cord length: 1.9 m
• Compliant with the Electrical Appliance and Material Safety Law
• Power supply (V): Single-phase 100
• Width (mm): 166
• Depth (mm): 164
• Height (mm): 190
• Power consumption (W): 40
• Fluid delivery rate (ml/h): 10-1450 x 2 (varies depending on the tubing used)
• Flow rate range (ml/h): 10-1450
• Operating air pressure (MPa): 196 (kPa)
• Motor (W): 15
• Number of paths: 2

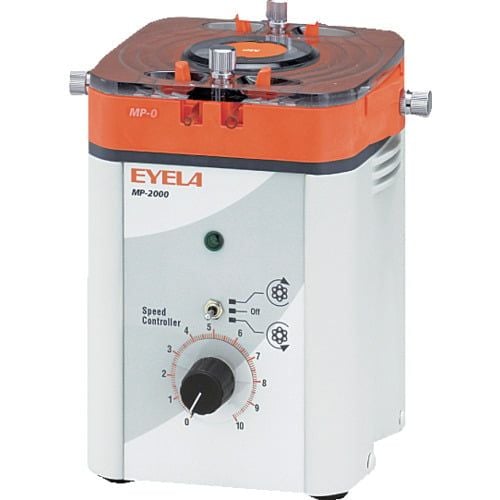

TOKYO MP-2000
