MADE IN JAPAN

Đặc điểm

• Since the only part in contact with the liquid is the tube, there is no contact with any metal parts, eliminating concerns about contamination of the liquid.
• The liquid can also be dispensed in the reverse direction by switching the switch.
• The maximum usable viscosity is 2000 cP.
• It can deliver a constant flow rate with high flow accuracy even in minute volumes ranging from 9 ml/h to 900 ml/h.
• It can deliver fluid through three separate channels.
• The second and third tiers of tube cases can be fixed in place at 90° intervals.
• The rotation speed is displayed digitally.

Thông số chi tiết

• Usable tubes: (Inner diameter 1.15mm x Outer diameter 3.2mm) / (Inner diameter 2.15mm x Outer diameter 4.2mm) / (Inner diameter 3.15mm x Outer diameter 5.2mm)
• Operating ambient temperature range: 5 to 35℃
• Power cord length: 2m
• Complies with the Electrical Appliance and Material Safety Law
• Power supply (V): Single phase 100
• Width (mm): 120
• Depth (mm): 342
• Height (mm): 186
• Power consumption (W): 80
• Flow rate range (L/h): 0.09 to 0.9 x 3
• Flow rate range (ml/h): 9 to 900
• External signal connection: Yes
• Number of paths: 3
• Power cord length (m): 1.9

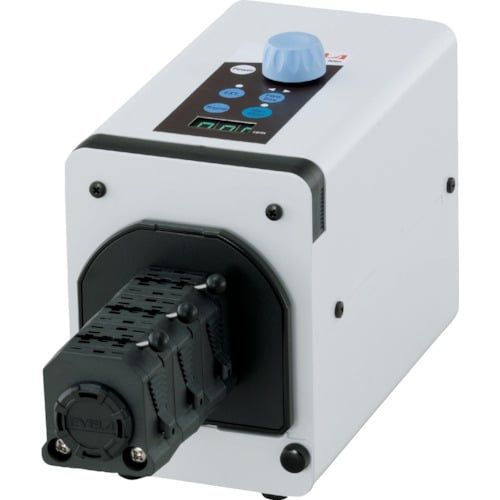

TOKYO NRP-2000A
