MADE IN JAPAN

Đặc điểm

• Since the only part in contact with the liquid is the tube, there is no contact with any metal parts, eliminating concerns about contamination of the liquid.
• The liquid can also be dispensed in the reverse direction by switching the switch.
• The maximum usable viscosity is 2000 cP.
• It can deliver a constant flow rate with high flow accuracy even in minute volumes ranging from 0.7 L/h to 80 L/h. (NRP-2000B model)
• The tube case can be fixed in place at 90° intervals.
• The rotation speed is displayed digitally.

Ứng dụng

• Transport of liquids containing microorganisms, viscous liquids, etc.

Thông số chi tiết

• Compatible tubes: (Inner diameter 4.76mm x Outer diameter 7.94mm) / (Inner diameter 6.35mm x Outer diameter 9.53mm) / (Inner diameter 7.94mm x Outer diameter 11.11mm)
• Operating ambient temperature range: 5 to 35℃
• Power supply (V): Single-phase 100
• Width (mm): 120
• Depth (mm): 296
• Height (mm): 186
• Power consumption (W): 80
• Flow rate range (L/h): 0.7 to 80
• External signal connection: Yes
• Number of paths: 1
• Power cord length (m): 1.9

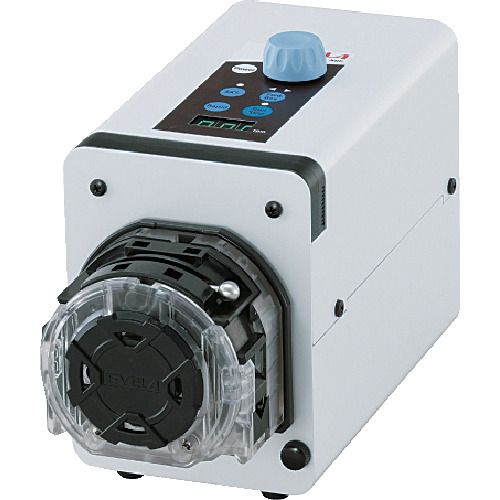

TOKYO NRP-2000B
