Đặc điểm

• A constant-temperature water bath with a built-in refrigerator allows for precise temperature control.
• This is a compact, embeddable type.
• External circulation is possible.
• It can be used as both a circulating water tank and a constant temperature water tank.

Ứng dụng

• Suitable for a wide variety of recycling applications, including analytical equipment.
• Reaction experiments, environmental tests, precipitation tests, constant temperature fermentation tanks, synthesis experiments, durability tests, organometallic precipitation tests, material destructive testing, etc.

Thông số chi tiết

• Maximum head (50/60Hz): 1.2/1.7m
• Operating ambient temperature range: 5 to 35℃
• Heater: 0.5kW
• Refrigeration unit/Refrigerant: Air-cooled 300W/R507A
• External circulation capacity (50/60Hz): Maximum flow rate 4.5/5.0L/min
• Temperature control method: PID control
• Power cord length: 2.5m
• Temperature adjustment range: -30 to 95℃
• Power supply (V): Single-phase 100
• Capacity (L): 4
• Body dimensions (mm) Width: 210
• Body dimensions (m m) Depth: 433
• Main unit dimensions (mm) Height: 600
• Tank interior dimensions (mm) Width: 140
• Tank interior dimensions (mm) Depth: 260
• Tank interior dimensions (mm) Height: 150
• Operating temperature range (°C): -30 to 95
• Safety device: Variable independent over-temperature protector, leakage and overcurrent breaker
• Power consumption (W): 1200
• External dimensions (mm) Depth: 530
• External dimensions (mm) Height: 600
• External dimensions (mm) Width: 225

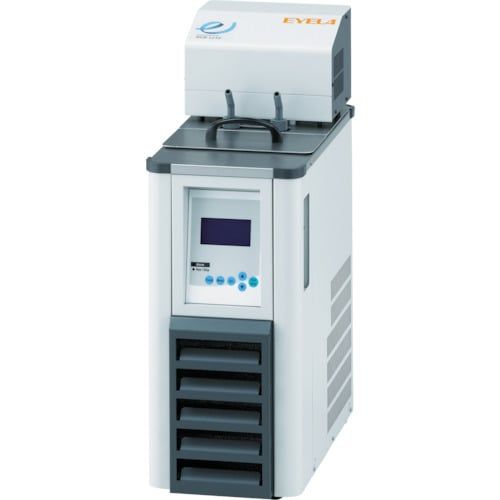

TOKYO NCB-1210A
