Đặc điểm

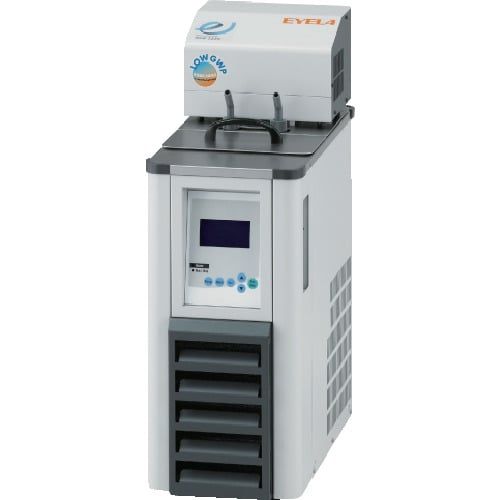

• A constant temperature chamber with a built-in refrigerator allows for precise temperature control from -20°C to 90°C.
• This is a compact, embeddable type.
• We use refrigerant R452A (GWP value 1945), which has a low global warming potential.
• External circulation is possible.
• It can be used as both a circulating water tank and a constant temperature water tank.

Thông số chi tiết

• Temperature control accuracy: ±0.1℃
• Operating ambient temperature range: 5 to 35℃
• Heater: 0.5kW
• Temperature control method: PID control
• Safety device: Variable independent over-temperature protector, leakage overcurrent breaker
• Power cord length: 2.5m
• Temperature control range: -20 to 95℃
• Maximum head (50/60Hz): 4.3/6.3m
• External circulation capacity (50/60Hz): Maximum flow rate 9.3/11L/min
• Refrigeration unit/refrigerant: Air-cooled 3000/R452A
• Power supply (V): Single-phase 100
• Capacity (L): 4.
• External dimensions (mm) Width: 210,
• External dimensions (mm) Depth: 433,
• External dimensions (mm) Height: 600.
• Tank internal dimensions (mm) Width: 140,
• Tank internal dimensions (mm) Depth: 260,
• Tank internal dimensions (mm) Height: 150.
• Operating temperature range (°C): -20 to 95.
• Safety devices: Variable independent over-temperature protection device, leakage overcurrent breaker.
• Temperature control method: PID control.
• Power consumption (W): 1200.
• External dimensions (mm) Height: 600

TOKYO NCB-1220B
