MADE IN JAPAN

Đặc điểm

• Because it uses flame-retardant polyurethane resin, it prevents melting and fire spread caused by sparks such as spatter.
• It offers the same lightweight, flexible, and abrasion-resistant properties as polyurethane hoses, resulting in superior handling.
• The outer shell is made of water-resistant polyurethane material, offering excellent weather resistance and peace of mind even when working outdoors.

Ứng dụng

• Pneumatic and instrumentation control equipment, etc.

Thông số chi tiết

• Operating temperature range: -5 to 60°C (no freezing)
• Operating pressure: 1.5 MPa (at room temperature)
• Fluid temperature: -5 to 60°C (no freezing)
• Color:
• Green Outer diameter (mm): 16 Inner
• diameter (mm): 11
• Total length (m): 10
• Wall thickness (mm): 2.5
• Connection fitting: CHS-11H-MP/C4P-11H
• Fluid used: Air
• Allowable bending radius (mm): SPB-6.5-10 60, SPB-8.5-10 70, SPB-11-10 100

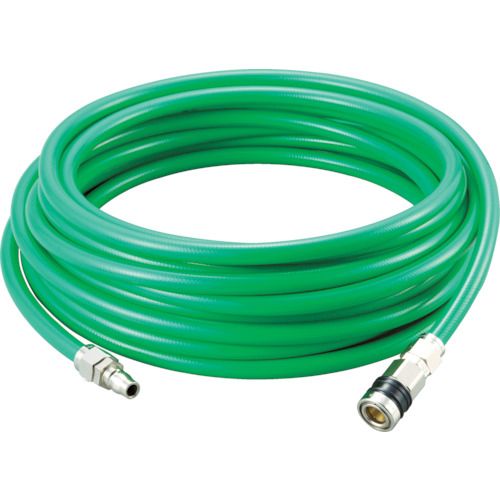

TRUSCO SPB-11-10
