MADE IN JAPAN

Đặc điểm

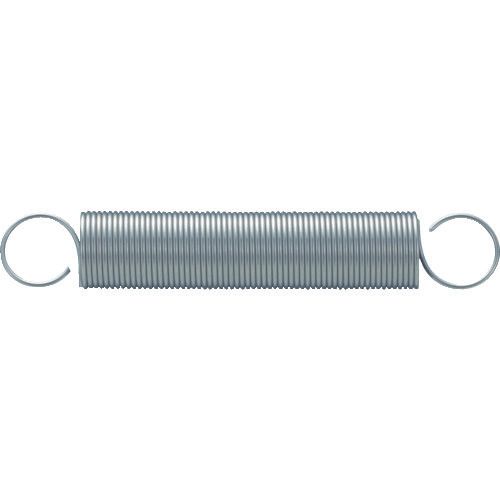

• This spring is made by tightly winding wire under a certain tension and raising both ends into hooks.
• This spring is used in the pulling direction.
• The tolerances for dimensions and spring characteristics comply with JIS B2704 Class 2.

Note

• Not available: chemSHERPA, SDS

Thông số chi tiết

• Operating temperature range: 290°C or less
• Wire diameter d (mm): 0.32
• Outer diameter D (mm): 5.0
• Free height L (mm): 29.9
• Number of turns (turns): 62.5
• Spring constant (N/mm): 0.014
• Allowable load (N): 1.37
• Initial tension (N): 0.157
• Free length (mm): 29.9
• Hook pair direction: 180
• degrees Winding direction: Right-hand winding
• Hook shape: Reverse round hook
• Allowable load height L1 (mm): 118.5

TRUSCO TESS-77072
