Đặc điểm

• It has excellent flame retardancy and chemical resistance.

Ứng dụng

• Heat-resistant applications include interlayer insulation and conductor insulation for heaters and transformers.
• Masking during the soldering process of printed circuit boards.

Thông số chi tiết

• Adhesive strength: 2.5N/10mm
• Tensile strength: 35.3N/10mm
• UL certified product (File No. E50292)
• UL standard 200 (200℃)
• Flame retardant UL510
• Core diameter: 3 inches (76mm)
• Base material thickness: 0.025mm
• Elongation: 50%
• Cutter required for cutting
• Color: Brownish-red
• Width (mm): 15
• Length (m): 33
• Thickness (mm): 0.065
• Dielectric breakdown strength (kV/mm): 5.2

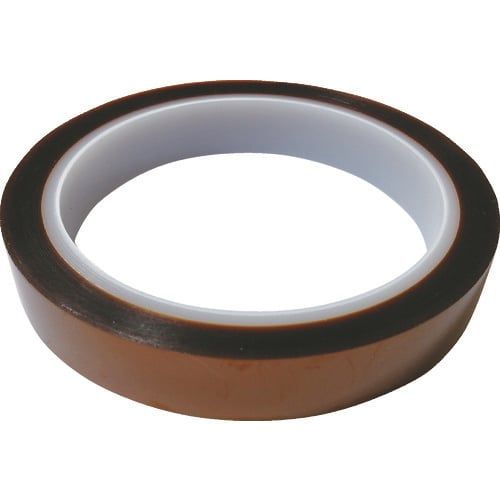

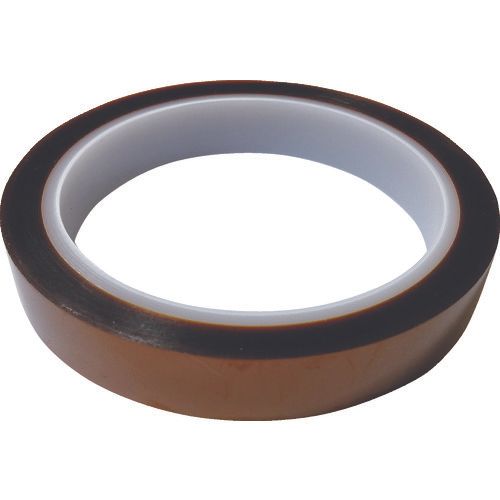

TRUSCO TPFT-15-33
