Đặc điểm

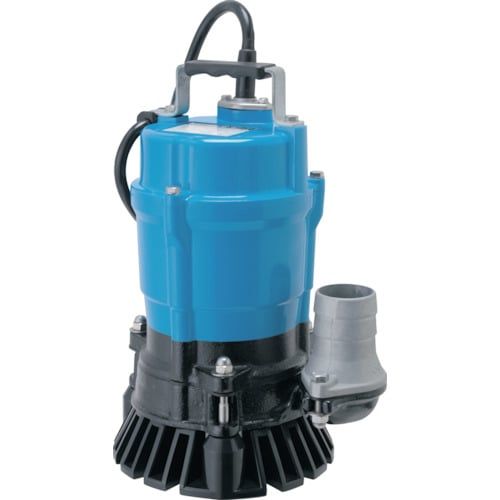

• This is a popular type of pump with a spiral casing, with particular consideration given to the cross-section for foreign matter passage.
• Lightweight materials such as die-cast aluminum and special water-resistant urethane rubber are used throughout, resulting in a lightweight yet strong design.
• The adoption of a high-spin impeller with a high gap structure further enhances wear resistance, and even when wear occurs, performance degradation is minimal. The design also minimizes clogging caused by sand and other debris.
• It is designed for easy maintenance.
• The motor has ample power and can operate continuously even when exposed to air.

Ứng dụng

• For drainage in general civil engineering and construction work.
• For draining rainwater, spring water, and stagnant water.
• For draining basements, various pits, etc.
• For general water pumping and drainage.

Thông số chi tiết

• Non-automatic operation type
• Power cord length: 5m
• Custom-made for different voltages available from a single unit
• Discharge volume (L/min): 100
• Total head (m): 8
• Frequency (Hz): 50
• Bore diameter (mm): 50
• Power supply (V): Three-phase 200
• Current (A): 2.1
• Output (kW): 0.4
• Overall width (mm): 241
• Overall length (mm): 184
• Overall height (mm): 328
• Foreign matter passage diameter (mm): 5
• Liquid temperature (°C): 0 to 40°C
• Usable water quality: Construction wastewater, muddy water
• Power cord length (m): 5

TSURUMI HS2.4 50HZ
