MADE IN JAPAN

Đặc điểm

• This high-grade pump Đặc điểm a high-spin impeller with a high-gap structure, making it even more resistant to wear and less prone to clogging from sand and other debris.
• Prioritizing wear resistance, durability, and lightweight design, the aluminum die-cast parts are covered with a special synthetic rubber.
• The lower part of the pump can be disassembled with just one box wrench, making maintenance easier.
• This is an electrode-type automatic model that can operate automatically simply by connecting the power supply.

Ứng dụng

• For drainage in civil engineering and construction work.
• For draining rainwater, spring water, and stagnant water.
• For general water pumping and drainage.

Thông số chi tiết

• Custom-made versions available for different voltages, even for single units.
• Discharge volume (L/min): 200
• Total head (m): 15
• Frequency (Hz): 60
• Bore diameter (mm): 50
• Power supply (V): Three-phase 200
• Current (A): 6
• Output (kW): 1.5
• Overall
• width (mm): 240 Overall length (mm): 240
• Overall height (mm): 426
• Foreign matter passage diameter (mm): 8.5
• Liquid temperature (°C): 0-40
• Usable water quality: Spring water, construction wastewater, muddy water
• Power cord length (m): 8
• Motor: Dry-type submersible induction motor, Class E

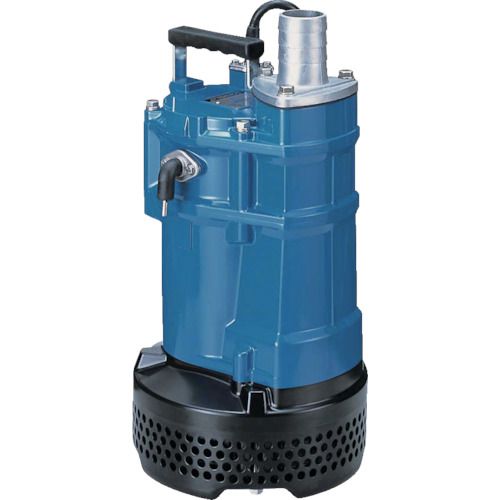

TSURUMI KTVE21.5 60Hz
