MADE IN JAPAN

Đặc điểm

• This product is certified as explosion-proof electrical machinery and equipment. It conforms to the pressure-resistant explosion-proof structure standard d2G4.
• It can be used in locations where there is a risk of explosion.
• The impeller is made of high-chromium cast iron.
• [Scope of Application] Ignition degree: G1, G2, G3, G4; Explosion class: Class 1, Class 2; Hazardous location: Class 1, Class 2
• [Explosion-proof electrical machinery and equipment, type approved] Approval certificate number: No. 69055

Ứng dụng

• For pumping and draining in atmospheres containing highly hazardous explosive gases and vapors.

Thông số chi tiết

• Pressure-resistant explosion-proof submersible centrifugal pump 50Hz
• Discharge volume (L/min): 100
• Total head (m): 8
• Frequency (Hz): 50
• Bore diameter (mm): 50
• Power supply (V): Single-phase 100
• Current (A): 6.0
• Output (kW): 0.4
• Overall width (mm): 250
• Overall length (mm): 214
• Overall height (mm): 563
• Foreign object passage diameter (mm): 7
• Liquid temperature (°C): 0-40
• Usable water quality: Wastewater
• Power cord length (m): 5

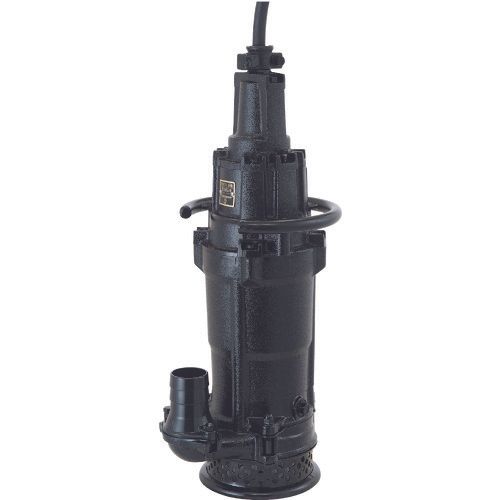

TSURUMI 50HSX2.4S-51 50HZ
