Đặc điểm

• The new siphon breaker mechanism's check valve prevents backflow of pumped water and leakage of the seal due to the siphon effect when the pump stops.
• Lightweight design was achieved by using aluminum die-cast and synthetic rubber for the main components.

Ứng dụng

• For absorbing and discharging residual water.
• For draining factory equipment wastewater and residual water.
• For draining accumulated water from slabs, floors, etc., at various construction sites.

Thông số chi tiết

• Non-automatic operation type
• Suction hose: 5m
• Custom-made for different voltages available from a single unit
• Discharge volume (L/min): 50 (maximum)
• Total head (m): 6.9 (maximum)
• Frequency (Hz): 50
• Bore diameter (mm): 25 x 25
• Power supply (V): Single phase 100
• Current (A): 6.8
• Output (kW): 0.48
• Overall width (mm): 265
• Overall length (mm): 300
• Overall height (mm): 307
• Usable water quality: Sewage, residual water, stagnant water
• Power cord length (m): 5

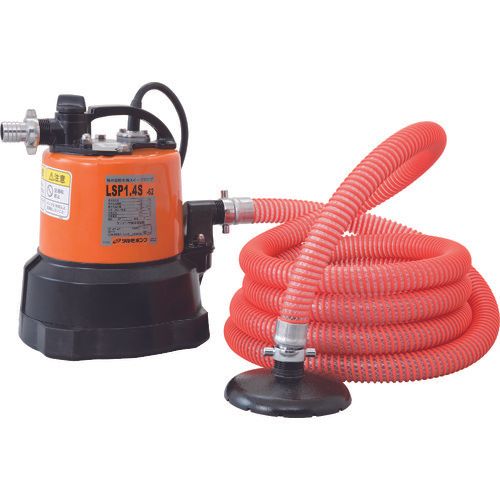

TSURUMI LSP1.4S 50HZ
