Đặc điểm

• It is even lighter than before. (Approximately 15% lighter than our previous model.)

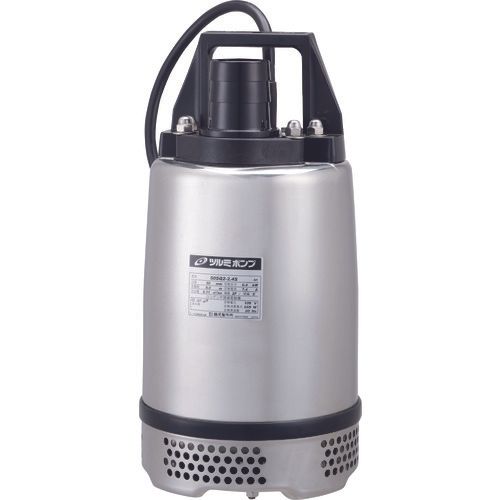

• This is a compact, corrosion-resistant submersible stainless steel pump.
• The parts in contact with the fluid are made of pressed stainless steel, making them rust-resistant, lightweight, and easy to carry.
• It Đặc điểm a high-spin structure that prevents clogging by foreign matter.
• Our unique oil lifter system ensures a long service life for the mechanical seals.

Ứng dụng

• For drainage in hospitals, laboratories, etc.

Thông số chi tiết

• Non-automatic operation type.
• Custom-made versions available for different voltages.
• Discharge volume (L/min): 100
• Total head (m): 5.5
• Frequency (Hz): 50
• Bore diameter (mm): 40
• Power supply (V): Single-phase 100
• Current (A): 5.7
• Output (kW): 0.25
• Overall width (mm): 180
• Overall length (mm): 180
• Overall height (mm): 366
• Foreign object passage diameter (mm): 6
• Liquid temperature (°C): 0-40
• Minimum pumping water level (mm): 60
• Usable water quality: Sewage and various liquids (seawater not usable)
• Power cord length (m): 6

TSURUMI 40SQ2-2.25S 50HZ
