Đặc điểm

• The impeller uses a special water-resistant urethane rubber with excellent wear resistance.
• The discharge direction can be changed to upward or sideways.
• It has a high-spin structure that prevents clogging by foreign matter.

Ứng dụng

• For drainage in general civil engineering and construction work.
• For draining rainwater, spring water, and stagnant water.
• For draining basements, various pits, etc.
• For general water pumping and drainage.

Thông số chi tiết

• Power cord length: 5m
• Foreign object passage diameter: 6mm
• Custom-made versions available for different voltages (one unit only)
• Automatic operation type
• Discharge volume (L/min): 160
• Total head (m): 11
• Frequency (Hz): 50
• Bore diameter (mm): 50
• Power supply (V): Single-phase 100
• Current (A): 10.8
• Output (kW): 0.75
• Overall width (mm): 223
• Overall length (mm): 187
• Overall height (mm): 341
• Foreign object passage diameter (mm): 6
• Liquid temperature (°C): 0-40
• Usable water quality: Rainwater, spring water, muddy water, construction wastewater
• Power cord length (m): 5

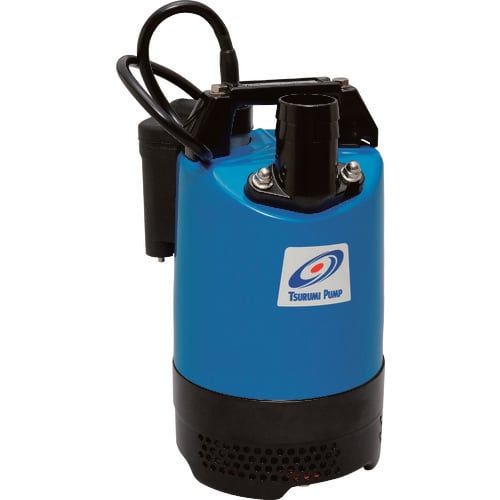

TSURUMI LB-800A 50Hz
