Đặc điểm

• The impeller uses a special water-resistant urethane rubber with excellent wear resistance.
• The discharge direction can be changed to upward or sideways.
• It has a high-spin structure that prevents clogging by foreign matter.
• Because it operates automatically according to the water level, it stops operating when not needed, resulting in power saving, energy efficiency, and a longer lifespan.

Ứng dụng

• For drainage in general civil engineering and construction work.
• For draining rainwater, spring water, and stagnant water.
• For draining basements, various pits, etc.
• For general water pumping and drainage.

Thông số chi tiết

• Power cord length: 5m
• Foreign object passage diameter: 6mm
• Custom-made versions available for different voltages (one unit at a time)
• Automatic operation type
• Discharge volume (L/min): 120
• Total head (m): 8
• Frequency (Hz): 50
• Bore diameter (mm): 50
• Power supply (V): Single-phase 100
• Current (A): 6.8
• Output (kW): 0.48
• Overall width (mm): 223
• Overall length (mm): 187
• Overall height (mm): 286
• Foreign object passage diameter (mm): 6
• Liquid temperature (°C): 0-40
• Usable water quality: Rainwater, spring water, construction drainage, muddy water
• Power cord length (m): 5

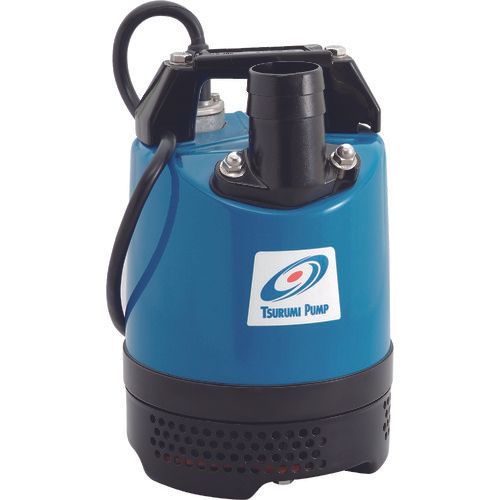

TSURUMI LB-480A 50Hz
