Đặc điểm

• Lightweight materials such as die-cast aluminum and special water-resistant urethane rubber are used throughout, resulting in a lightweight yet strong design.
• This is an electrode-type automatic device.
• The adoption of a high-spin impeller with a high gap structure further enhances wear resistance, and even when wear occurs, performance degradation is minimal. The design also minimizes "locking" caused by sand and other debris.
• The motor has ample power and can operate continuously even when exposed to air.
• Like the LB model, it Đặc điểm an easy-to-maintain design.
• Electrode-type automatic model (HSE type).
• By operating only when the water level rises through automatic operation, power consumption is reduced, resulting in energy savings.

Ứng dụng

• For drainage in general civil engineering and construction work.
• For draining rainwater, spring water, and stagnant water.
• For draining basements, various pits, etc.
• For general water pumping and drainage.

Thông số chi tiết

• Automatic operation type.
• Custom-made versions available for different voltages.
• Discharge volume (L/min): 100
• Total head (m): 8
• Frequency (Hz): 60
• Bore diameter (mm): 50
• Power supply (V): Single-phase 100
• Current (A): 5.9
• Output (kW): 0.4
• Overall width (mm): 241
• Overall length (mm): 207
• Overall height (mm): 358
• Foreign object passage diameter (mm): 7
• Usable water quality: Construction drainage, muddy water
• Power cord length (m): 5

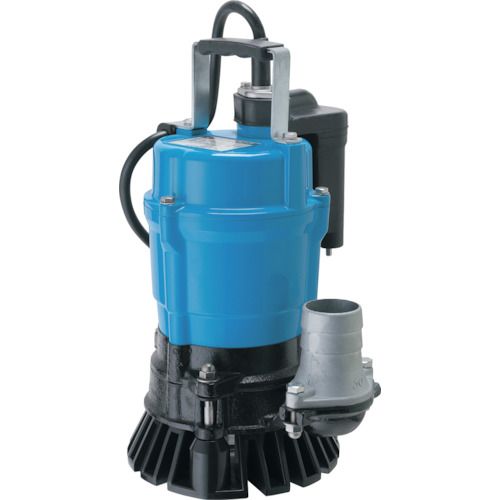

TSURUMI HSE2.4S 60HZ
