Đặc điểm

• Pumping is possible with just 10mm of water below the bottom of the pump, and a minimum water level of 5mm has been achieved for continuous operation.
• This type does not require priming.
• It employs a high-spin impeller made of water-resistant special urethane rubber, which is highly resistant to clogging caused by sand and mud, and boasts approximately three times the abrasion resistance of FCD material.
• Even if the bottom strainer becomes clogged, water can still be absorbed through the side slits thanks to the action of the rubber bellows.
• The bottom section, from the pump casing to the stand, is made of a single piece of molded synthetic rubber.
• Suitable for use in FRP tanks and similar applications.

Ứng dụng

• For low water level drainage.
• For floor water drainage in general building construction.
• For draining low-water residual water from manholes, pits, and water receiving/supply tanks.
• For general residual water drainage.

Thông số chi tiết

• Power cord length: 5m
• Foreign object passage diameter: 6mm
• Custom-made versions available for different voltages (one unit at a time)
• Automatic operation type
• Discharge volume (L/min): 120
• Total head (m): 8
• Frequency (Hz): 50
• Bore diameter (mm): 50
• Power supply (V): Single-phase 100
• Current (A): 6.8
• Output (kW): 0.48
• Overall width (mm): 210
• Overall length (mm): 234
• Overall height (mm): 304
• Foreign object passage diameter (mm): 6
• Usable water quality: Cleaning water, floor water, stagnant water
• Power cord length (m): 5

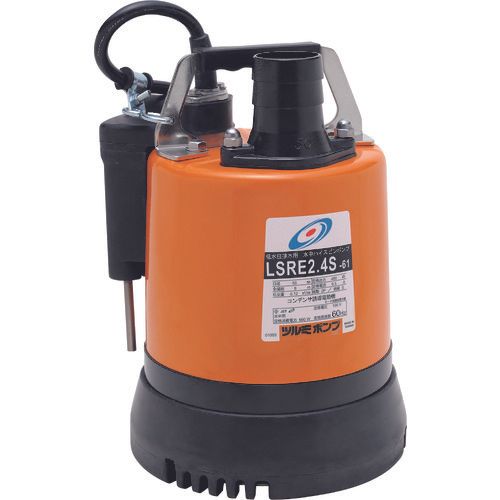

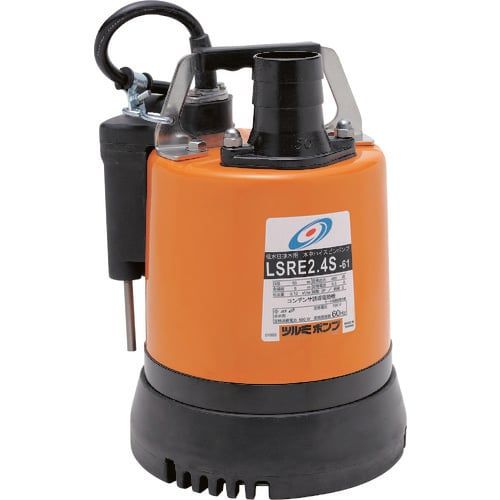

TSURUMI LSRE2.4S-50HZ
