Đặc điểm

• This pump is used to suck up and drain small amounts of residual water or stagnant water.
• Thanks to the sealed valve seat and the new swing valve mechanism, water that has been drawn in will not flow back.
• The bottom plate structure allows for drainage down to a minimum water level of 1 mm.

Ứng dụng

• For low water level drainage.
• For floor water drainage in general building construction.
• For draining residual water from the bottom of manholes, pits, and water receiving/supply tanks.

Thông số chi tiết

• Non-automatic operation type.
• Custom-made versions available for different voltages.
• Total head (m): 11 (maximum)
• Frequency (Hz): 50
• Bore diameter (mm): 25
• Power supply (V): Single-phase 100
• Current (A): 6.8
• Output (kW): 0.48
• Overall width (mm): 196
• Overall length (mm): 196
• Overall height (mm): 316
• Usable water quality: Cleaning water, floor water, stored water
• Power cord length (m): 5

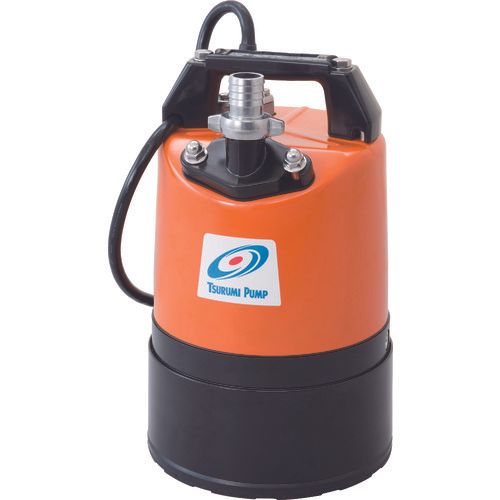

TSURUMI LSC1.4S 50HZ
