MADE IN JAPAN

Đặc điểm

• This is a quiet type, so the operating noise won't be noticeable even when used in an office or a quiet laboratory.
• There is no need to deal with oil leaking from the vacuum pump.
• There is no need to worry about oil flowing back into the equipment and contaminating it.
• We offer custom-made solutions for different voltages.

Ứng dụng

• For use in physical and chemical experiments, analytical instruments, and laser application equipment.
• Vacuum pumping systems, used as backings for electron microscopes.
• For semiconductor manufacturing equipment, sputtering equipment, and vacuum deposition equipment.
• For use in vacuum dryers and freeze dryers.

Thông số chi tiết

• Exhaust speed (L/min) 50/60Hz: 135/162
• Ultimate pressure (Pa): 5.0 × 10⁻¹
• Power supply (V): Single phase 100-120
• Overall width (mm): 470
• Overall length (mm): 241.5
• Overall height (mm): 166
• Intake port diameter (mm): KF25 (NW25)
• Body dimensions Overall width (mm): 470

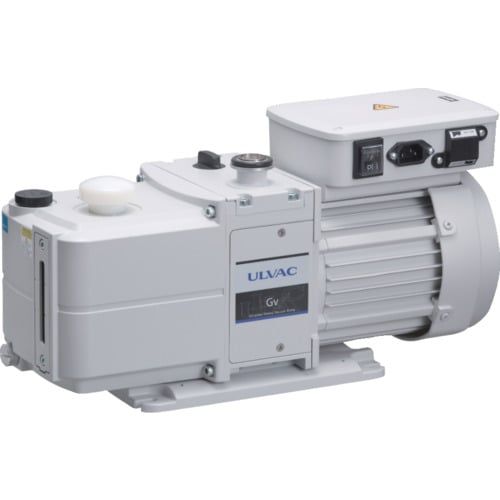

ULVAC Gv135-100120
