MADE IN JAPAN

Đặc điểm

• This is a chemical-type diaphragm vacuum pump that uses corrosion-resistant components such as PTFE in the gas contact area.

Ứng dụng

• Rotary evaporator.
• Vacuum concentration, vacuum filtration, centrifugation.
• Medical devices, pharmaceutical equipment.
• Special gas replacement.
• Vacuum drying.
• Analytical instruments, scientific and chemical instruments.

Thông số chi tiết

• Chemical type with thermal protector. Custom
• Chemical type
• with thermal protector. Custom
• -made versions available for different voltages (consultation required). Intake
• /exhaust pipe diameter (mm): ODφ9 × IDφ6 (G1/4)
• Maximum dimensions (mm): 142 (W) × 288.5 (L) × 202 (H)
• Power cord length: 1.8m
• Power supply (V): Single-phase 100
• Exhaust speed (L/min) 50/60Hz: 20/24
• Intake port diameter (mm): 10
• Width (mm): 142
• Depth (mm): 288.5
• Height (mm): 202
• Power consumption (W): 50
• Power cord length (m): 1.8
• Ultimate pressure (Pa): 1.0 × 10³

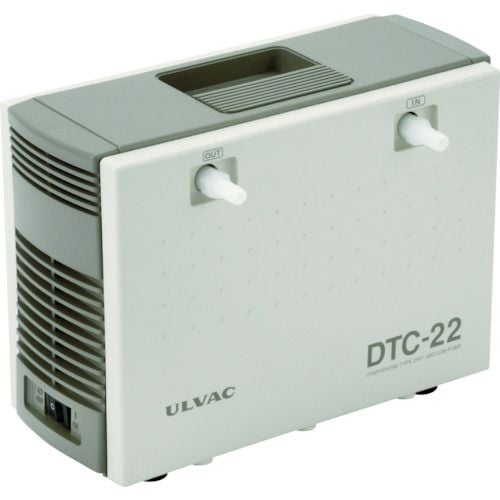

ULVAC DTC-22
