MADE IN JAPAN

Đặc điểm

• This is a chemical-type diaphragm vacuum pump that uses corrosion-resistant components such as PTFE in the gas contact area.

Ứng dụng

• Rotary evaporator.
• Vacuum concentration, vacuum filtration, centrifugation.
• Medical devices, pharmaceutical equipment.
• Special gas replacement.
• Vacuum drying.
• Analytical instruments, scientific and chemical instruments.

Thông số chi tiết

• Chemical type with thermal protector.
• Chemical type
• with thermal protector.
• Power cord length: 1.8m.
• Custom-made versions for different voltages are available (consultation required).
• Ultimate pressure (kPa): 1.0.
• Intake/exhaust pipe diameter (mm): ODφ9 × IDφ6 (G1/4).
• Maximum dimensions (mm): 142 (W) × 288.5 (L) × 202 (H).
• Power supply (V): Single-phase 100.
• Exhaust speed (L/min) 50/60Hz: 40/46.
• Intake port diameter (mm): 10. Width
• (mm): 155.
• Depth (mm): 336.5.
• Height (mm): 217.
• Power consumption (W): 100.
• Power cord length (m): 1.8.
• Ultimate pressure (Pa): 1.0 × 10³

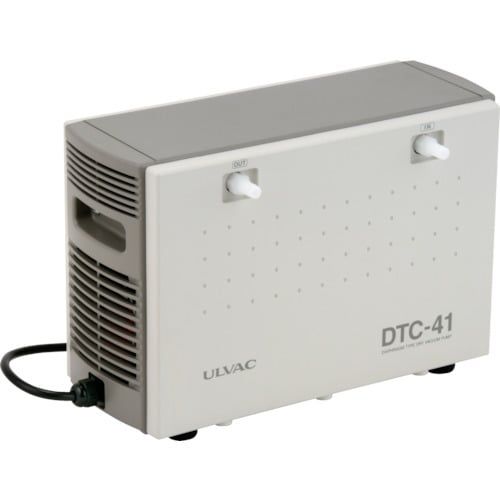

ULVAC DTC-41
