MADE IN JAPAN

Đặc điểm

• In a Gaede-type vacuum pump, the rotating parts are lubricated and vacuum-sealed by vacuum pump oil, ensuring a stable high vacuum.
• Because it is a direct-drive motor type, it can achieve a small size and high exhaust speed compared to a belt-driven system due to its high-speed rotation.

Ứng dụng

• For use in physical and chemical experiments, analytical instruments, and laser application equipment.
• Vacuum pumping systems, backings for electron microscopes.
• Semiconductor manufacturing equipment.
• Vacuum deposition equipment, freeze dryers.
• Medical equipment in general.

Thông số chi tiết

• Custom-made versions available for different voltages (one unit at a time
• ). Exhaust speed (L/min) 50/60Hz: 10/12.
• Ultimate pressure (Pa): 1.3.
• Power supply (V): Single-phase 100. Overall width
• (mm): 130.
• Overall length (mm): 228.
• Overall height (mm): 165.
• Intake port diameter (mm): 18.
• Lubricant used: SMR-100.
• Power cord length (m): 1.8

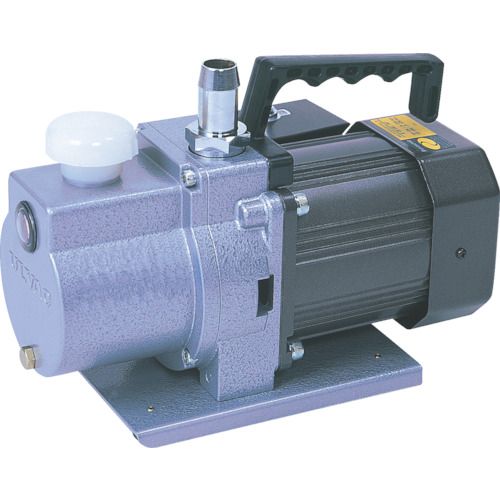

ULVAC G-10DA
