MADE IN JAPAN

Đặc điểm

• In a Gaede-type vacuum pump, the rotating parts are lubricated and vacuum-sealed by vacuum pump oil, ensuring a stable high vacuum.
• Because it is a direct-drive motor type, it can achieve a small size and high exhaust speed compared to a belt-driven system due to its high-speed rotation.

Ứng dụng

• For use in physical and chemical experiments, analytical instruments, and laser application equipment.
• Vacuum pumping systems, backings for electron microscopes.
• Semiconductor manufacturing equipment.
• Vacuum deposition equipment, freeze dryers.
• Medical equipment in general.

Thông số chi tiết

• Custom-made versions available for different voltages, starting from a single unit.
• Exhaust speed (L/min): 50/60Hz: 50/60
• Ultimate pressure (Pa): 1.3
• Power supply (V): Single-phase 100
• Overall width (mm): 156
• Overall length (mm): 341
• Overall height (mm): 199.5
• Intake port diameter (mm): 18 Lubricant
• used: SMR-100
• Power cord length (m): 2.0

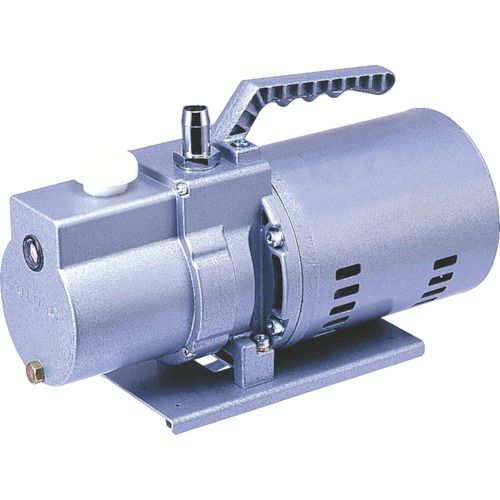

ULVAC G-50DA
