MADE IN JAPAN

Đặc điểm

• This is a chemical-type vacuum pump with a surface treatment applied to the gas-contacting surfaces.
• This pump offers enhanced durability and is ideal for vacuuming applications involving specialized gases and solvents used in industries such as chemical manufacturing and semiconductor manufacturing.

Ứng dụng

• Chemical equipment such as concentrators.
• Semiconductor manufacturing equipment.
• Pharmaceutical machinery.
• Drying after chemical treatment.
• Vacuum dryer, connected dryer.

Thông số chi tiết

• Two-stage exhaust system.
• Custom-made versions available for different voltages.
• Chemical type.
• Exhaust speed (L/min): 50/60Hz: 50/60.
• Ultimate pressure (Pa): 0.67.
• Power supply (V): Single-phase 100.
• Overall width (mm): 165.5.
• Overall length (mm): 419.
• Overall height (mm): 222.7 . Intake port
• diameter (mm): KF-25.
• Thermal protector included: Yes.
• Lubricant used: SO-M.
• Power cord length (m): 2.0

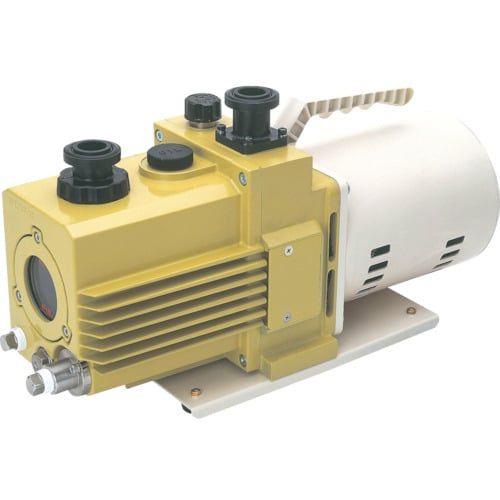

ULVAC GCD-051X
