MADE IN JAPAN

Đặc điểm

• It's compact and easy to carry.
• This is a waterless aspirator.
• It provides consistently stable suction power.
• You can set the pressure to any desired level while monitoring the vacuum gauge.
• It has an outlet for the drawn-in gas, making it easy to connect to the outside air or a duct.

Ứng dụng

• Rotary evaporator.
• Centrifugal evaporator.
• Vacuum filtration.

Thông số chi tiết

• Collection bottle: 450ml
• Built-in vacuum pump: Diaphragm type dry vacuum pump DA-15D (special)
• Pressure adjustment: Needle valve
• Vacuum gauge: Bourdon tube vacuum gauge
• Power supply (V): Single phase 100
• Pumping speed (L/min) 50/60Hz: 12/15
• Inlet port diameter (mm): Outer diameter φ9
• Width (mm): 178
• Depth (mm): 300
• Height (mm): 311
• Power cord length (m): 1.8
• Ultimate pressure (Pa): 6.6 × 10³
• Ultimate pressure (kPa): 6.6
• Power consumption (W) (50/60Hz): 39/43

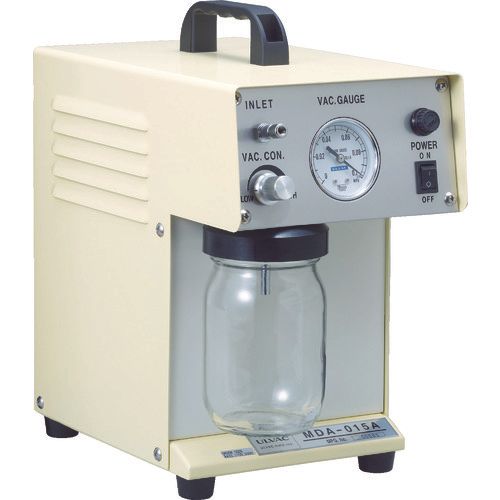

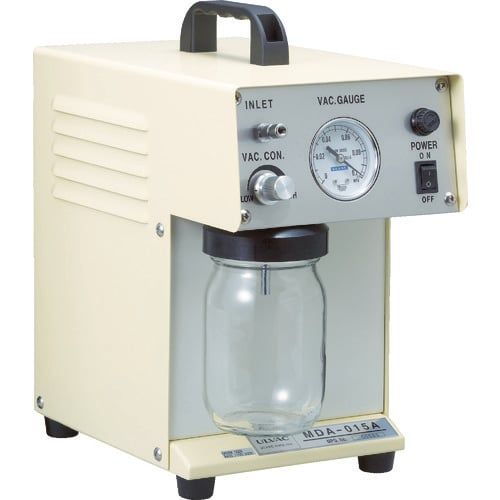

ULVAC MDA-015A
