MADE IN JAPAN

Đặc điểm

• Equipped with a multi-range universal motor, it can handle voltages anywhere in the world.
• It can accommodate many voltages with simple wiring changes.
• It is equipped with various Đặc điểm such as a gas ballast system, forced lubrication system, and oil backflow prevention system, and is a CE marking self-declared product.

Ứng dụng

• For use in physical and chemical experiments, analytical instruments, and laser application equipment.
• Vacuum pumping systems, backings for electron microscopes.
• Semiconductor manufacturing equipment, sputtering equipment, vacuum deposition equipment.
• Vacuum dryer, freeze dryer.

Thông số chi tiết

• Compatible with different voltages (please inquire)
• Exhaust speed (L/min) 50/60Hz: 280/336
• Ultimate pressure (Pa): 0.67
• Power supply (V): Three-phase multi
• Overall width (mm): 181
• Overall length (mm): 546
• Overall height (mm): 269
• Body dimensions Overall width (mm): 181
• Dimensions (mm): 181 x 544 x 269
• Intake port diameter: KF-25

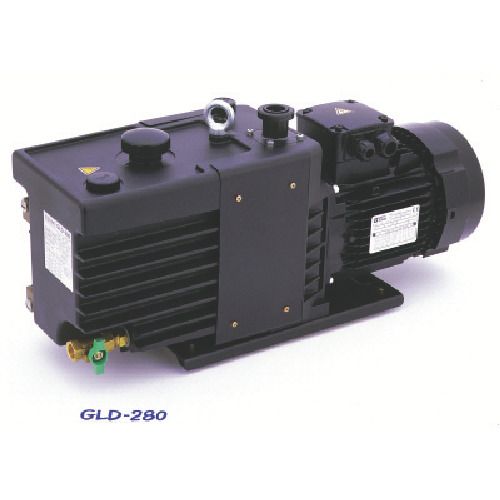

ULVAC GLD-280A
