MADE IN JAPAN

Đặc điểm

• We designed the main unit to be thin.
• This is ideal for molded products with narrow gate pitches, such as multi-cavity products.
• It allows for highly accurate positioning without any wobble or vibration during sliding, and without leaving any cut residue.

Ứng dụng

• For various gate cutting applications related to removal machines in resin molding factories.
• For cutting ABS resin and other similar materials.

Thông số chi tiết

• Single-acting type.
• Cutting capacity (mm) ABS resin: 2.3.
• Cutting capacity (mm) Soft resin: 3.5.
• Cutting capacity (mm) Hard resin: 2.3.
• Pressing force (N): 500.
• Air consumption (cm³/stroke): 68.
• Operating air pressure (MPa) Integrated: 0.4-0.5.
• Width (mm): 28.
• Depth (mm): 82.6.
• Height (mm): 54.0.
• Replacement blades for resin: NY10AJ, NY10AJL, NY10AD, NY10AJB, NY10AJT, NY10AH.
• Mounting hole (A x B): 20 x 35.
• Mounting hole: M4.
• Operating air pressure (MPa): 0.4-0.5

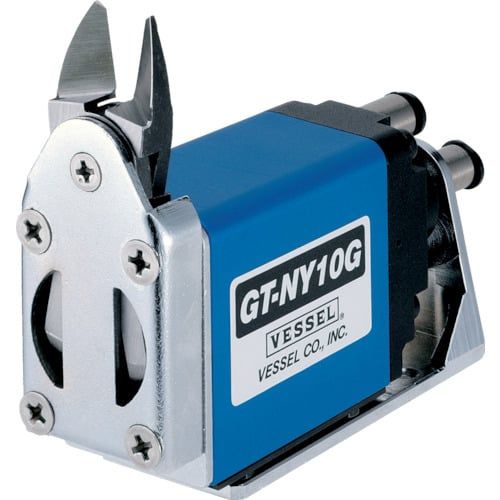

VESSEL GT-NY10G
