MADE IN GERMANY

Đặc điểm

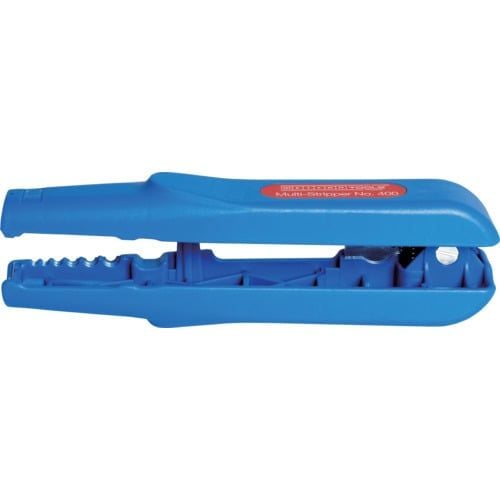

• This single tool can strip and cut both the outer and inner sheaths of round cables.
• By making circumferential cuts followed by vertical cuts, the outer layer can be peeled off smoothly.
• The inner coating can be quickly peeled off down to 0.5 to 6.0 mm².
• The built-in cutting blade can cut cables up to 8mm in diameter.
• It is ideal for working in confined spaces such as inside switch boxes.

Ứng dụng

• For stripping the sheath from round cables.
• For stripping or cutting the insulation from conductors inside cables.

Thông số chi tiết

• Overall length (mm): 155
• Suitable wire size (mm): 8.0-13.0
• Stripping capacity (mm²): 0.5/0.8/1.5/2.5/4.0/6.0
• Stripping capacity (AWG): 20/18/15/13/11/10
• Cutting capacity (mm): 0-8

VICON 10001620
