MADE IN JAPAN AND CHINA

Đặc điểm

• This is a general-Ứng dụng cooling water circulation system.
• The front filter mounting plate is only held in place by magnets, so it can be easily removed by pulling it forward for cleaning.
• While maintaining the same compact dimensions as the previous model (CF302L), the cooling capacity has been significantly improved. Furthermore, the cooling pipe material has been changed to SUS304 for improved corrosion resistance and maintenance.
• The type of refrigerant used in our refrigeration system has changed, allowing us to contribute even more to the global environment than before.
• This new controller Đặc điểm high-brightness white LEDs for improved visibility and ease of operation. It allows switching between displaying the measured temperature and the set temperature. The design is simple and user-friendly.

Ứng dụng

• For rotary evaporators.
• For circulating cooling of heat-generating components in sealed circuits in a variety of applications, including research equipment, industrial equipment, and analytical and measuring instruments.

Thông số chi tiết

• External closed-circulation system
• . Circulating water: Tap water, Nibrine (liquid temperature below 10°C).
• Cooling capacity: Approx. 450W at 10°C, Approx. 330W at -10°C.
• Width (mm): 205.
• Depth (mm): 396.
• Height (mm): 535.
• Operating temperature range (°C): -20 to 30.
• Maximum flow rate (L/min) (50/60Hz): 9/10.
• Power supply (V): AC100±10% 7A (10A).
• Cooling capacity (W): Approx. 450 (liquid temperature 10°C), Approx. 330 (liquid temperature -10°C).

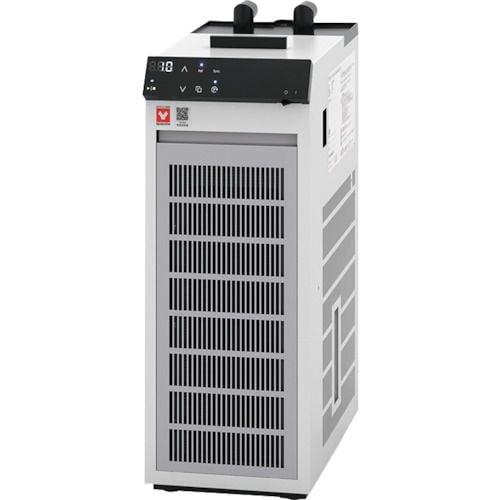

YAMATO CF303
