MADE IN JAPAN

Đặc điểm

• We have adopted RCF-free materials (alumina fiber) for the furnace body material, which do not use any specific chemical substance RCF.
• It is a very environmentally friendly material in terms of waste disposal.
• It Đặc điểm an easy-to-configure input method and a user-friendly, programmable controller, achieving highly accurate temperature control.
• It employs a digitally configured, integrated over-temperature protection controller and is equipped with safety Đặc điểm such as a self-diagnostic function that always controls to the safe side in the event of an abnormality, and an overcurrent leakage circuit breaker.

Ứng dụng

• High-temperature heat treatment (1150℃)

Thông số chi tiết

• Power cord length (m): Approx. 2
• Normal operating temperature range: 100-1150℃
• Custom-made versions for different voltages are available (consultation required)
• Power supply (V): Single-phase 200
• Body dimensions (mm) Width: 507
• Body dimensions (mm) Depth: 605
• Body dimensions (mm) Height: 727
• Effective internal dimensions (mm) Width: 270
• Effective internal dimensions (mm) Depth: 350
• Effective internal dimensions (mm) Height: 255
• Internal volume (L): 23.6
• Heater output (kW): 3.5
• Temperature control method: Microcomputer-controlled PID control
• Cord length (m): 2
• Safety devices: Self-diagnostic function, overcurrent leakage breaker, overheat protection device
• Internal dimensions (mm) Width x Depth x Height: 270 x 350 x 250

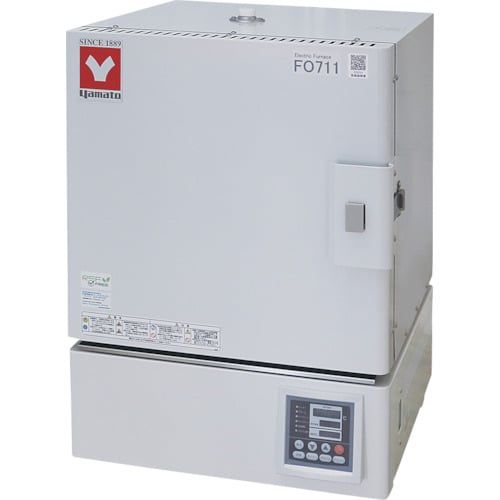

YAMATO FO711
