MADE IN JAPAN

Đặc điểm

• The adoption of a large observation window allows for easy observation of the conditions inside the vessel.
• Independent over-temperature protection, controller, and circuit breaker can all be fully operated.

Ứng dụng

• Ideal for drying glassware and other laboratory equipment after washing.

Thông số chi tiết

• Safety features: Self-diagnostic function, independent over-temperature protection, overcurrent leakage breaker
• Operating temperature range: Room temperature +5 to 70°C
• Temperature control method: PID control
• Power cord length: Approx. 2m
• Custom-made versions for different voltages are available (consultation required)
• Power supply (V): Single-phase 100
• Internal volume (L): 460
• Body dimensions (mm) Width: 674
• Body dimensions (mm) Depth: 711
• Body dimensions (mm) Height: 1586
• Effective internal dimensions (mm) Width: 620
• Effective internal dimensions (mm) Depth: 620
• Effective internal dimensions (mm) Height: 1195
• Operating temperature range (°C): Room temperature +5 to 70

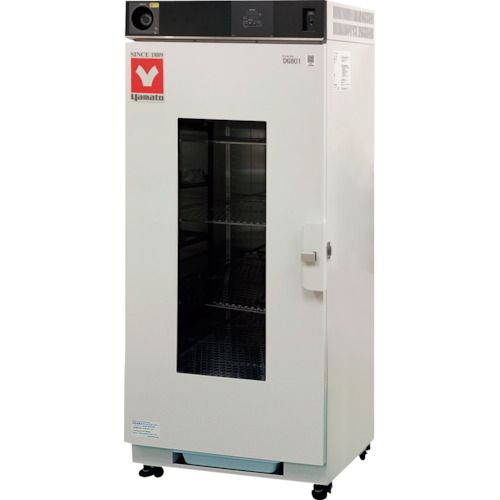

YAMATO DG801
