MADE IN JAPAN

Đặc điểm

• Forced circulation by a fan enables highly accurate temperature control and a uniform temperature distribution inside the chamber.
• The glass inner door minimizes temperature fluctuations during sample observation.
• It uses refrigerant R404A, which complies with fluorocarbon regulations.
• Defrosting can be performed either manually using a dedicated key or automatically via programmed operation.
• After power is restored, the power outage compensation function will automatically resume operation at the set temperature.
• Ideal for low-temperature and environmental testing.

Ứng dụng

• Low-temperature testing and environmental testing.

Thông số chi tiết

• Forced air circulation type
• Operating temperature range: -10 to +50℃
• Temperature control method: PID control
• Custom-made versions for different voltages are available (consultation required)
• Power supply (V): Single phase 100
• Internal volume (L): 286
• Body dimensions (mm) Width: 710
• Body dimensions (mm) Depth: 645
• Body dimensions (mm) Height: 1630
• Effective internal dimensions (mm) Width: 600
• Effective internal dimensions (mm) Depth: 477
• Effective internal dimensions (mm) Height: 1000
• Safety devices: Self-diagnostic function, key lock, overcurrent breaker, independent over-temperature protector

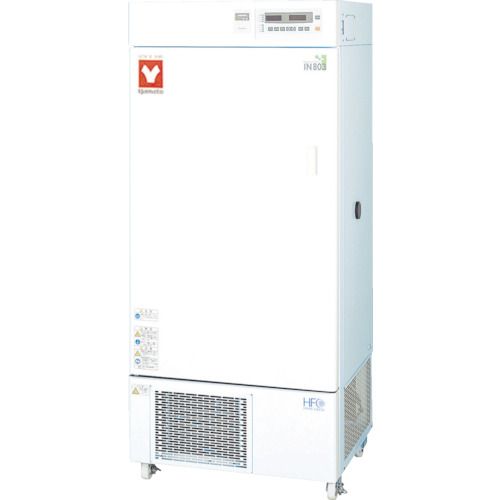

YAMATO IN804
