MADE IN JAPAN

Đặc điểm

• We have adopted RCF-free materials (alumina fiber) for the furnace body material, which do not use any specific chemical substance RCF.
• It is a very environmentally friendly material in terms of waste disposal.
• Because it is completely covered by a furnace body (insulating material), trace components emitted from the heater and components that have adhered to the heater once are prevented from adhering to the sample.
• In addition to 99-step and 99-pattern programmed operation, there are various operating modes such as auto-start operation, auto-stop operation, and repeat operation.
• In addition to an independent over-temperature protection device, it comes standard with a self-diagnostic function and a key lock function, enhancing maintenance and prevention of accidental operation.
• The R-type thermocouple temperature sensor allows for long-life use with a wide temperature control range up to 1150°C.

Ứng dụng

• High-temperature heat treatment (1150℃)

Thông số chi tiết

• Temperature control range: 100-1150°C
• Temperature fluctuation (JIS standard): 2.0°C (at 1150°C)
• Temperature gradient (JIS standard): 14°C (at 1150°C)
• Temperature control method: PID control
• Furnace body: Alumina fiber
• Sensor: R thermocouple (for temperature control, independent over-temperature protection)
• Operating functions: Constant value operation, quick auto-stop operation, auto-start operation, auto-stop operation, program operation: up to 99 steps, 99 patterns, repeatable operation function
• Safety devices: Self-diagnosis function (sensor abnormality detection, heater wire break detection, triac short circuit detection, main relay failure detection, automatic over-temperature protection), key lock function, independent over-temperature protection, overcurrent leakage breaker, thermal fuse
• Power cord length: 2m
• Power supply (V): Single-phase 200
• Body dimensions (mm) Width: 506
• mm, Depth: 504
• mm, Height: 625 mm,
• Effective internal dimensions: Width: 300 mm, Depth: 250
• mm, Height: 150
• mm, Volume
• (L): 11.3 mm,
• Heater output (kW): 3.25 mm,
• Operating temperature range (°C): 100 to 1150 mm,
• Temperature control method: PID control,
• Cord length (m): 2 mm,
• Furnace dimensions (mm): 300 x 250 x 150 mm,
• Safety devices: Self-diagnosis function (sensor abnormality detection, heater wire break detection, triac short circuit detection, main relay failure detection, automatic over-temperature prevention), key lock function, independent over-temperature protector, overcurrent leakage breaker, thermal fuse

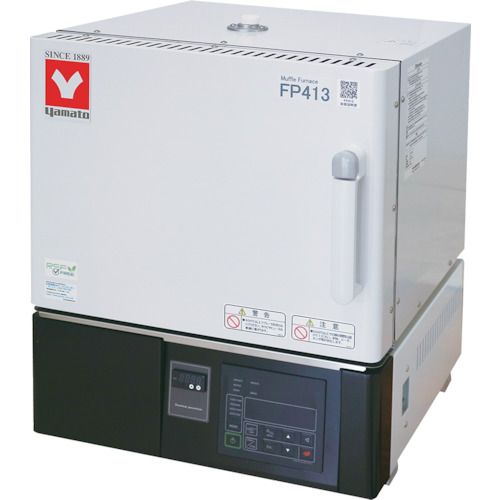

YAMATO FP413
