MADE IN JAPAN

Đặc điểm

• It has a large capacity of 5L with an inner diameter of φ240mm.
• The flat design, with no heaters or sensors inside the bus, makes cleaning easy.
• This bath (suitable for both water and oil) Đặc điểm enhanced safety functions, including automatic overheat protection, temperature limit abnormality detection, and independent overheat protection (fixed temperature type).

Ứng dụng

• Oil bath for research and development and experimentation

Thông số chi tiết

• Temperature control accuracy: ±1.5℃ (water), ±2℃ (oil)
• Calibration offset, overshoot notification, power outage compensation recovery function (mode selectable), 2A service outlet
• Power supply (V): Single phase 100
• Capacity (L): 5
• Body dimensions (mm) Width: 262
• Body dimensions (mm) Height: 240
• Tank dimensions (mm) Width: 240 Tank dimensions (mm) Depth:
• 240
• Tank dimensions (mm) Height: 119
• Safety devices: Automatic over-temperature prevention, temperature upper limit abnormality, independent over-temperature prevention (fixed temperature type), power cut-off by power fuse, sensor wire break detection
• Thermostat: Room temperature +10 to 180

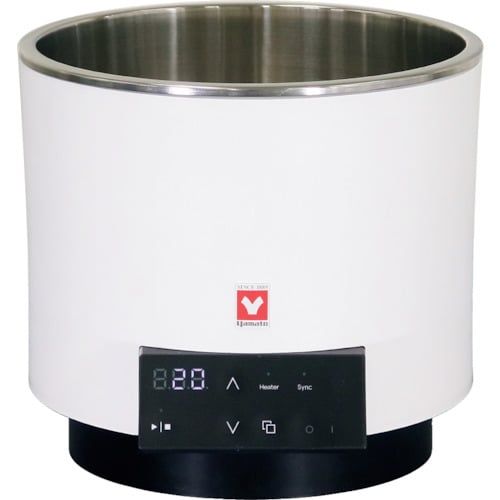

YAMATO BO302
