MADE IN JAPAN

Đặc điểm

• It can maintain a precise temperature for large components.
• The exhaust damper allows for rapid discharge and internal cooling.
• The controller includes monitoring functions for power consumption, CO₂ emissions, and heater operation volume.
• It comes standard with a variety of high-precision functions, including programmed operation.
• Safety Đặc điểm have been further enhanced with self-diagnostic functions, automatic overheat prevention, and a key lock function.

Ứng dụng

• For heat treatment of large quantities of large samples.

Thông số chi tiết

• Forced air circulation and ventilation system
• Temperature control method: PID control
• Power cord length: 2m
• Custom-made versions for different voltages are available (consultation required)
• Power supply (V): Three-phase 200
• Internal volume (L): 512
• Body dimensions (mm) Width: 1500
• Body dimensions (mm) Depth: 1015
• Body dimensions (mm) Height: 1330
• Effective internal dimensions (mm) Width: 800
• Effective internal dimensions (mm) Depth: 800
• Effective internal dimensions (mm) Height: 800
• Operating temperature range (°C): Room temperature +15 to 200
• Safety device: Self Diagnostic function, door switch, fan error, key lock, independent over-temperature protection, overcurrent breaker
• Power cord length (m): 2.5
• Power consumption (W): 1500
• Heater capacity (W): 4500
• Shelf load capacity (kg): 15
• Temperature control accuracy (°C): ±0.5
• Included shelves: 3
• Operating ambient temperature range (°C): Room temperature +15 to 200
• Shelf pitch: 76
• Exhaust vent: 1 on the back
• Timer function: Yes
• Temperature distribution accuracy (°C): 15
• Time to reach maximum temperature (minutes): 60

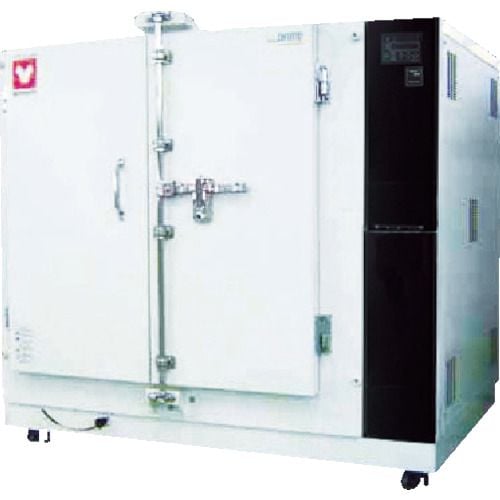

YAMATO DF832
