MADE IN JAPAN AND CHINA

Đặc điểm

• High-precision large constant temperature incubator with a temperature of 260°C (DH model is 360°C)
• Equipped with a V-type controller, the display visibility and operability of the control panel are improved, and it comes standard with a monitor display for power consumption, CO2 emissions, and heater operation volume, as well as a variable fan speed function.
• Programmable operation (maximum 99 steps, 99 patterns, repeatable operation function).
• It is equipped with an exhaust damper.
• Side-flow design ensures uniform heating.
• Equipped with a variable airflow function as standard, it suppresses heat treatment of lightweight samples and powder scattering.
• Programmable operation is available.
• It Đặc điểm a quick auto-stop function and a fan error detection function.

Ứng dụng

• for research
• For production lines
• For temperature characteristic testing

Thông số chi tiết

• Temperature control range: Room temperature +15 to 260℃
• Temperature control accuracy: ±0.1℃ (at 260℃) JTM K05
• Temperature fluctuation: 1.0℃ (at 260℃) JIS
• Power cord length: Approx. 3m
• Temperature distribution accuracy: ±1.5℃ (at 260℃) JTM K05
• Temperature gradient: 10℃ (at 260℃) JIS
• Cable hole: Inner diameter 33mm: (Rear) 1
• Operating functions: Constant value operation, Quick auto stop operation, Auto start operation, Auto stop operation, Program operation: Up to 99 steps, 99 patterns, Repeat operation function
• Additional functions: Power supply/operating time accumulation function (up to 65535 hours), Calendar timer (24 hours), Calibration offset function, Power consumption, CO2 emissions, Heater operation amount monitoring display, Power outage recovery mode selection, User setting information saving/recall, Wind speed variable function
• Timer operation: 1 minute to 99 hours 59 minutes setting: Time operation 24-hour setting: Time-based operation
• Power supply (V): Single-phase 200
• Internal volume (L): 91
• Main unit dimensions (mm) Width: 1050
• Main unit dimensions (mm) Depth: 630
• Main unit dimensions (mm) Height: 850
• Effective internal dimensions (mm) Width: 450
• Effective internal dimensions (mm) Depth: 450
• Effective internal dimensions (mm) Height: 450
• Safety devices: Self-diagnosis function (sensor abnormality detection, heater wire break detection, triac short circuit detection, main relay failure detection, automatic over-temperature prevention), independent over-temperature protector, key lock function, leakage circuit breaker, door switch, control box switch, fan error detection
• Method: Forced air circulation and ventilation
• Thermostat: PID control
• Temperature control range (°C): Room temperature +15 to 260

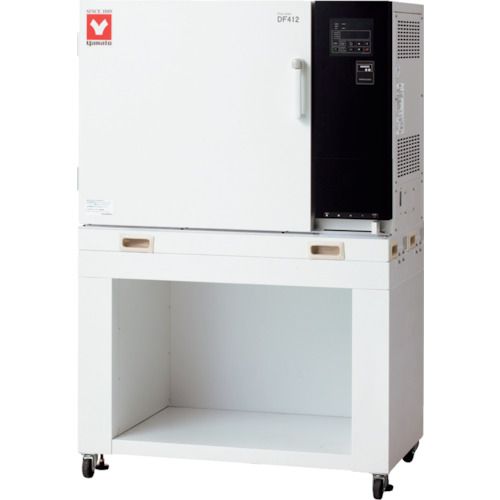

YAMATO DF412
