MADE IN JAPAN

Đặc điểm

• Its space-saving design, measuring W180 x D360mm, makes it suitable for use on a tabletop.
• It achieves a wide temperature range (-10 to 80°C) and high accuracy (±0.1°C), maintaining a constant temperature in the measurement section of various analytical instruments such as analyzers and viscometers.
• With a high head of approximately 3.3/4.7m (50/60Hz), it ensures reliable circulation even in narrow pipes with high pressure loss or when installed under a desk.
• We use R-134a, an environmentally friendly alternative refrigerant.
• With a low GWP value of 1430, it contributes to the preservation of the global environment.
• With the optional external temperature sensor, you can precisely control the temperature of the object.

Note

• Please note that if the "user who will be using the product" and the actual user differ, the product may not be covered under warranty.

Thông số chi tiết

• External closed-circulation system
• . Circulating water: tap water, antifreeze (liquid temperature below 10.0°C).
• Control method: Refrigeration unit control + heater PID (-10.0 to 50.0°C: Refrigeration unit ON, controlled by heater PID; 50.1 to 80.0°C: Refrigeration unit OFF, controlled by heater PID only).
• Safety devices: Overcurrent leakage circuit breaker, temperature sensor malfunction, temperature rise/fall warning (continue operation), temperature upper/lower limit abnormality (stop operation), dry-boil prevention float switch, refrigeration unit overload relay, refrigeration unit high-pressure switch, fan motor protection, circulation pump thermal protector, refrigeration unit protection delay timer. Independent over-temperature protection device (fixed temperature type)
• Width (mm): 180
• Depth (mm): 360
• Height (mm): 553
• Operating temperature range (°C): -10 to 80
• Maximum flow rate (L/min) (50/60Hz): 6.8/8.0
• Power supply (V): Single-phase 100
• Cooling capacity (W): Approx. 230 (liquid temperature 10°C)
• Temperature control range (°C): -10.0 to 80.0
• Temperature control accuracy (°C): ±0.1

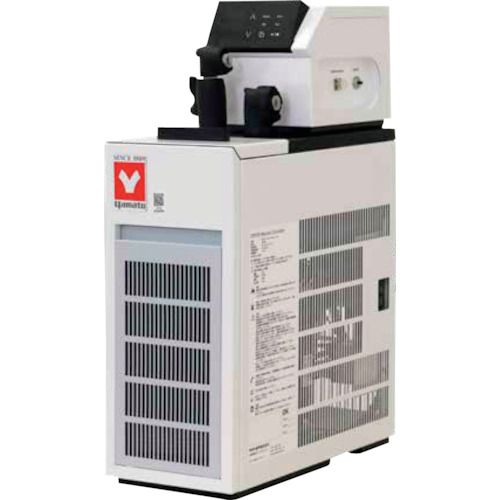

YAMATO CB100
