MADE IN JAPAN

Đặc điểm

• Suitable for workpieces that produce powder-like or similarly small curled chips.
• The cutting edge strength is increased.
• It is easy to re-grind.

Ứng dụng

• Work material: For low carbon steel, medium carbon steel, and high carbon steel.

Thông số chi tiết

• Tip: Medium
• Precision: JIS Class 2
• Precision Notation: JIS Class 2 Nominal
• Dimensions: M80
• Pitch (mm): 2
• Thread Length (mm): 55
• Overall Length (mm): 145
• Shank Diameter (mm): 58
• Shank Square Section (mm): 46
• Pilot Hole Diameter (mm): 78.1
• Machined Thread: Metric Thread
• Surface Treatment: Non-Coating
• Number of Grooves: 6
• Number of Chamfering Threads: 5
• Length of Square Section (mm): 50

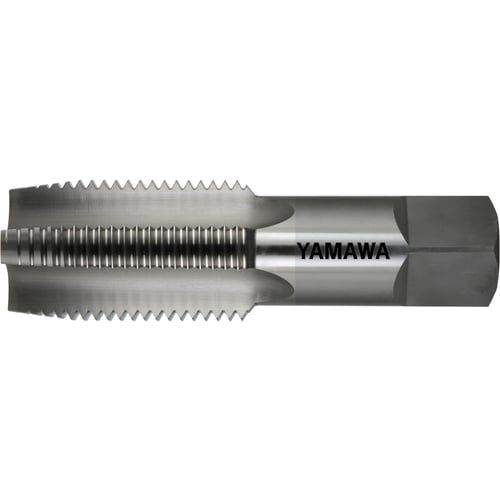

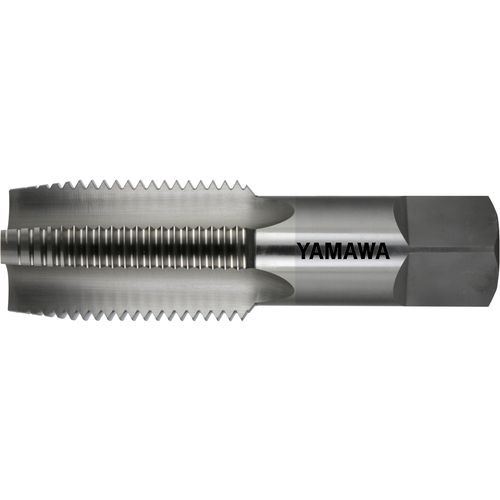

YAMAWA HT-2-M80X2-2
