MADE IN JAPAN

Đặc điểm

• By discharging chips forward from the die, chip-related problems are reduced, enabling continuous machining of high-precision external threads.
• The adoption of the new die grading system allows you to select the die grade that best suits your needs.
• By marking the chamfered portion of the die surface, it has become easier to identify the machining direction.
• By adding a recess on the back of the die, the contact between the end faces is improved when the holder is attached.

Ứng dụng

• For external thread machining.
• Suitable for machining: low carbon steel, medium carbon steel, brass, brass castings, rolled aluminum, and aluminum alloy castings.

Thông số chi tiết

• Nominal size: M3
• Pitch (mm): 0.5
• Outer diameter (mm): 25
• Thickness (mm): 9
• Thread type: Metric thread
• Accuracy: S6
• Number of chip holes: 3
• Number of threads per inch: 1.5
• Surface treatment: Non-coated

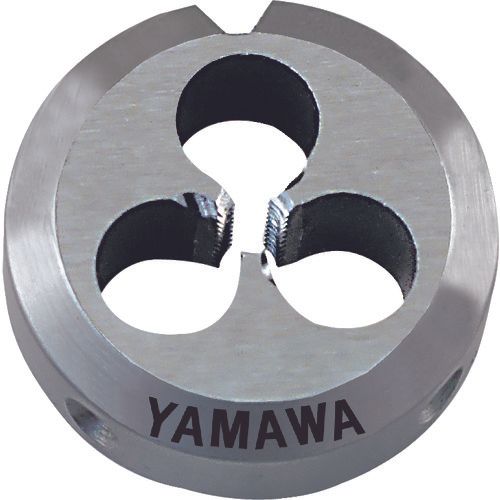

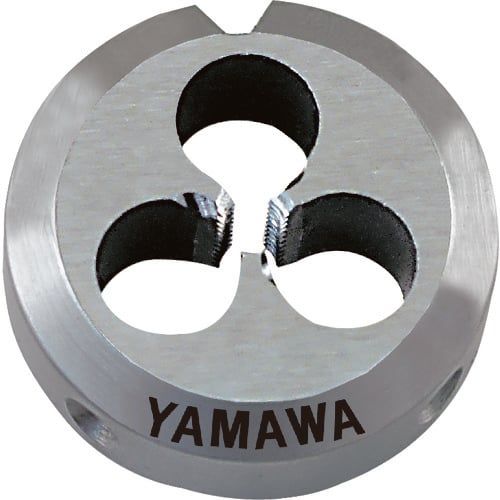

YAMAWA DPO-S6-M3X0.5-25
