MADE IN JAPAN

Đặc điểm

• This simplifies the process of pulling out and driving in threaded knock pins (in tight spaces) when disassembling and assembling press dies, improving efficiency.
• For the mold industry.

Ứng dụng

• To remove the pin.

Thông số chi tiết

• Air pressure: 0.4-0.6MPa
• Recommended hose inner diameter (mm): 9.5
• No-load impact rate (min⁻¹): 5000
• Air consumption (m3/min): 0.2
• Hose attachment port: Rc1/4
• Overall length (mm): 162
• Impact rate (min⁻¹): 5000
• No-load impact rate (rpm): 5000
• Capable pin diameter (mm): φ13

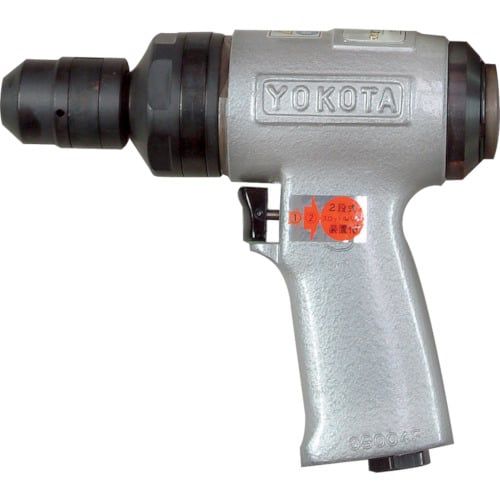

YOKOTA YDP-13
