MADE IN AMERICA

Đặc điểm

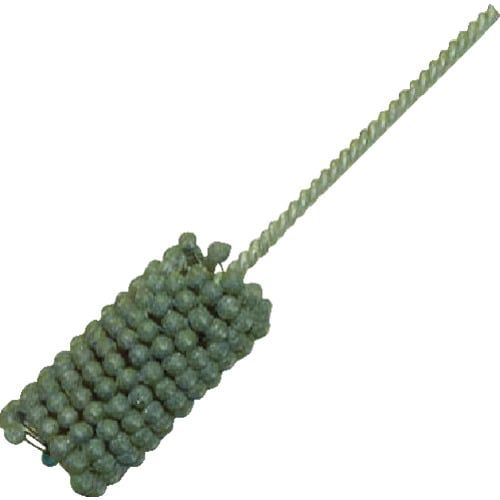

• The structure consists of a shaft with a fiber resin base attached to a ball made of sintered artificial abrasive particles.
• The legs are made of nylon resin, which is highly elastic, and it is possible to polish burrs and uneven surfaces on the inner surface of workpieces.

Ứng dụng

• SC (silicon carbide) is suitable for workpieces made of relatively hard materials (such as cast iron, carbon steel, and hardened iron).
• AO (aluminium oxide) is suitable for relatively soft materials (aluminum, stainless steel, copper, etc.). <Coarse grit> #60, 120, 180, mainly for deburring. <Fine grit> #240, 320, 600, mainly for polishing. <LA rubigate alumina> Equivalent to #1000 (for mirror finish). (#20, #40, #80, #400, #800 are available as custom orders.)
• Deburring, polishing, finishing, and chamfering of the inner surface of cylindrical parts of various equipment and components.
• Honing finish for internal combustion engines, hydraulic cylinders, and various other cylinders.
• Rust removal, cleaning, and polishing of the inner surfaces of tubes and pipes.

Thông số chi tiết

• The rotational speed varies depending on the workpiece, but is approximately between 300 and 1200 rpm.
• The operating time varies depending on the material of the workpiece and the purpose of use, but is approximately 10 to 20 seconds. The reciprocating motion is approximately one reciprocation every 2 seconds.
• The grinding fluid is an aqueous solution (solube type) or spindle oil.
• Compatible tools: electric drill, drill press, machining center, etc.
• Overall length (mm): 203
• Shank diameter (mm): 3.7
• Suitable inner diameter (mm): 8.5 to 9.5
• Abrasive grain: silicon carbide
• Abrasive grain length (mm): 50

YUKO BC-9.0
